Description

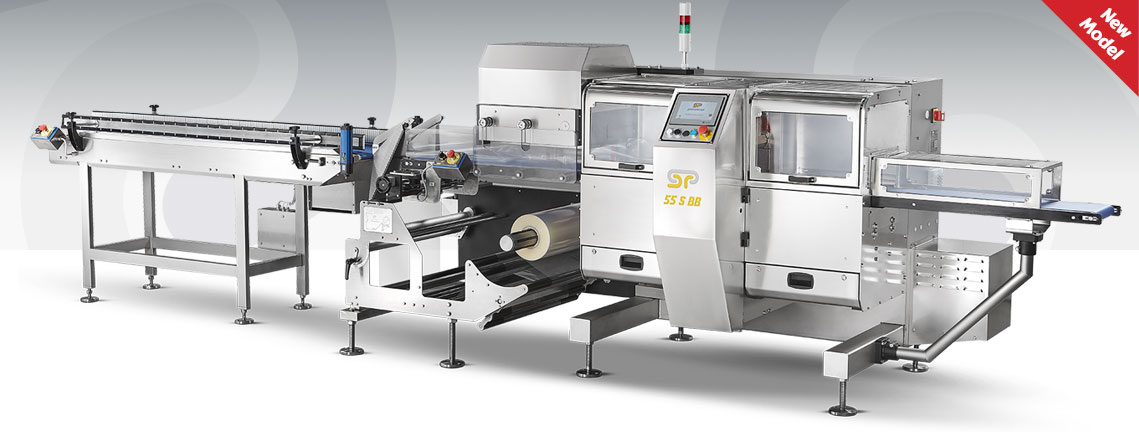

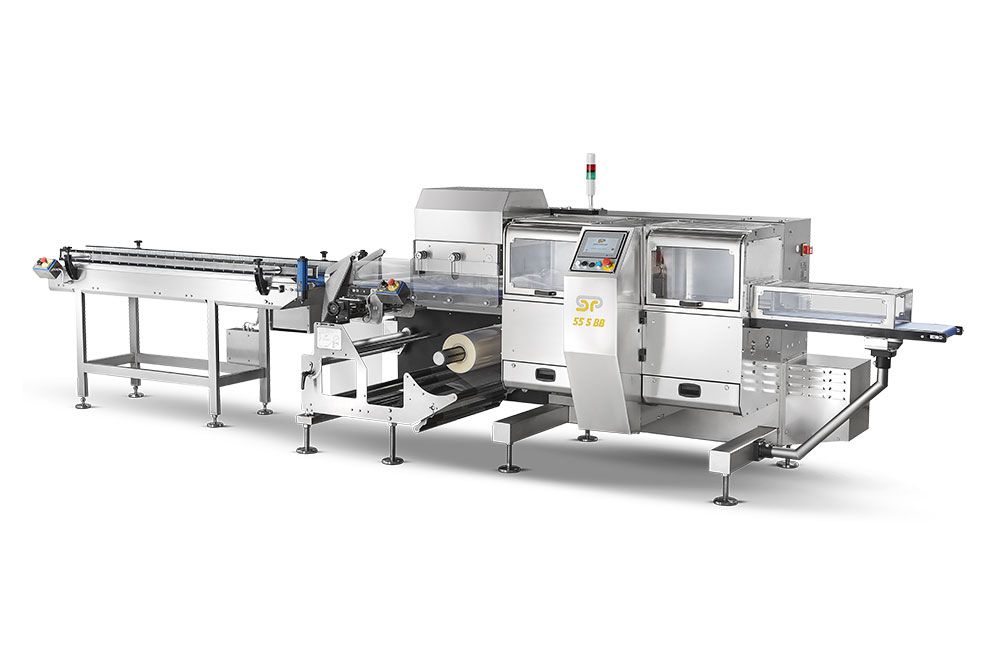

GSP 55 S BB is the result of our machines' evolution and of many experience's years in the field of horizontal products' packaging.
Electronic Horizontal Pillow Pack Wrapper, versatile and reliable, very flexible in the format-change, suitable for food and non food products, both for single-dose and for multiple packages.
Cantilever frame and easy accessibility, together with sanitation (sanification) principles, easy maintenance and safety, it has been constructed for, allows this wrapper to distinguish itself.
- Motion control with PLC.

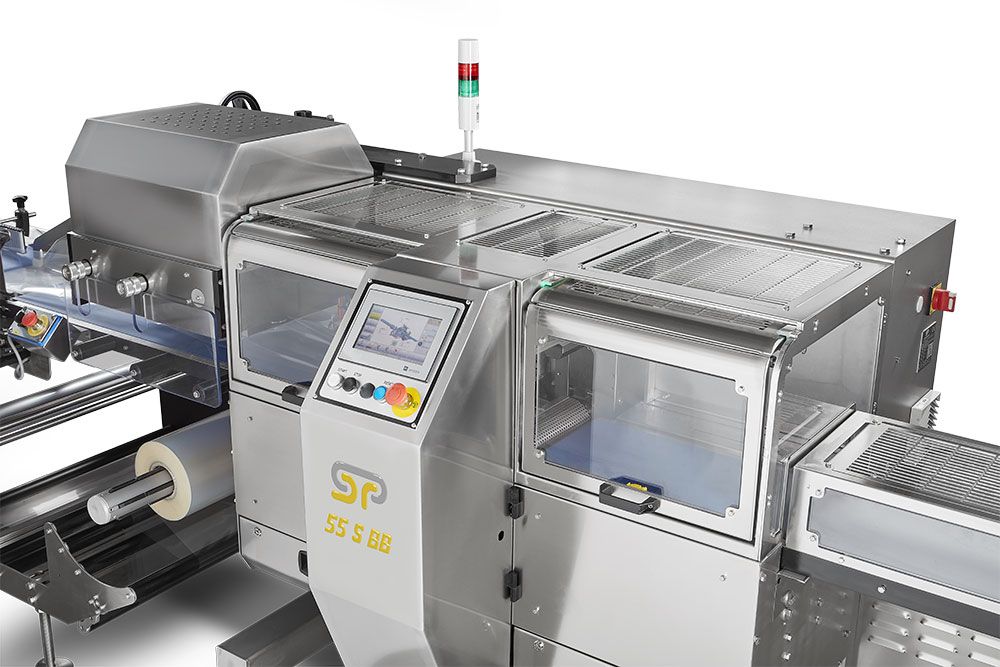

- Interface through 5,7” touch screen.
- Working programs memorization.
- Machine diagnostic.
- Temperature control through touch screen.
- Power 3,5 KW.
- Roller conveyor through the up jaw
- Printing unit for expiry date
- Photo electric cell for print register
- Casters under the machine
- Gear shift for short/long pitch

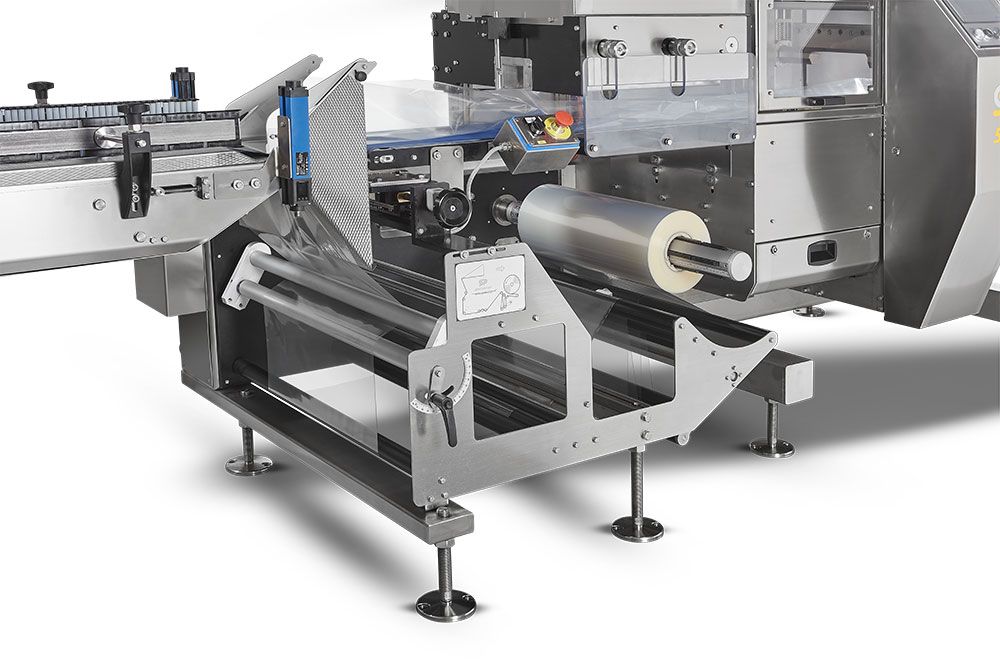

- Double reel holder
- Polythene version

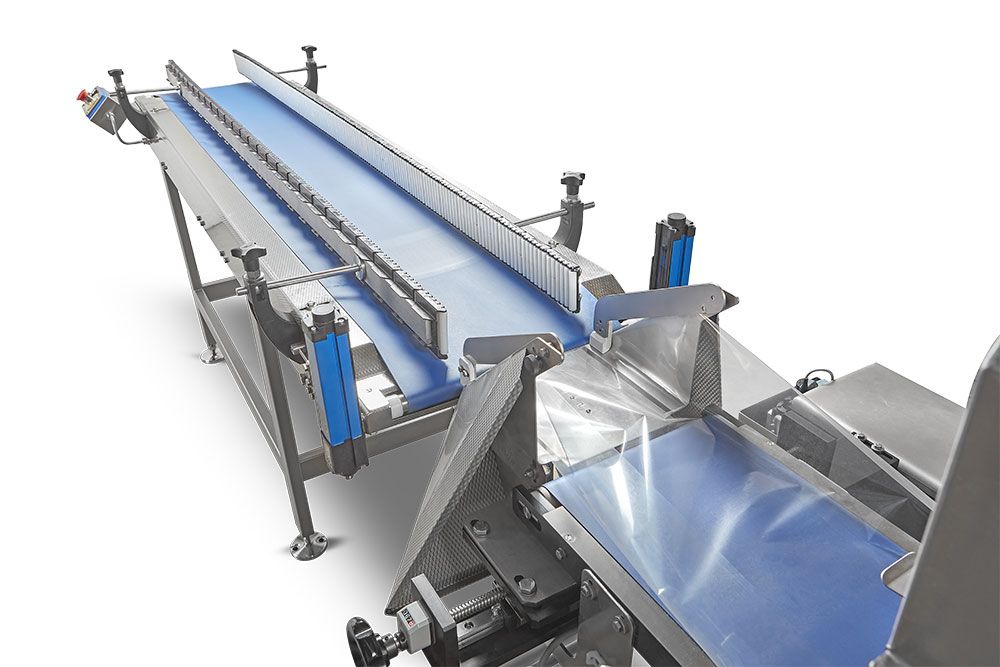

- Infeed extension
- Zig-zag knives
- Euroslot punch
- No product no bag
- Gussetting device
Many other solutions can be proposed by our technical team according to the various requirements
Production speed:
Up to 150 ppm
Product dimensions:
Width: 10÷250 mm
Height: 1÷120 mm
Length: 60÷600 mm
Reel dimensions:
Reel width 520/720/920 mm
Outside diameter: 350 mm
Core diameter: 68÷75 mm
Packaging materials:
Heat-sealable
Coated
Cold-sealable
Polyethylene
Machine dimensions:
Length: 4.860 mm
Width: 1.190 mm
Height: 1.500 mm
Compressed air:
7 bar dry and fltered air.
